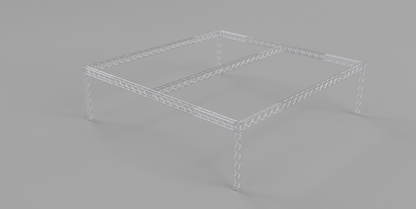

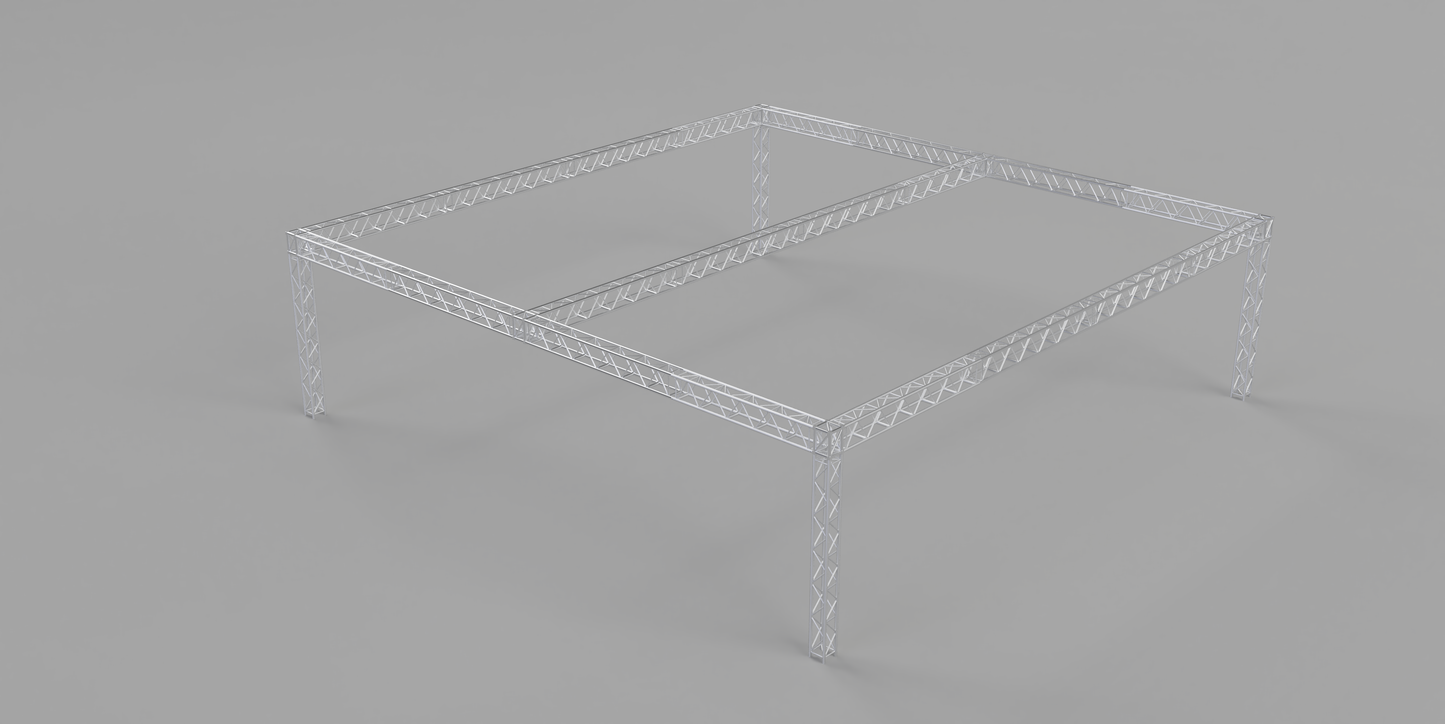

12mx12m Truss Grid Section

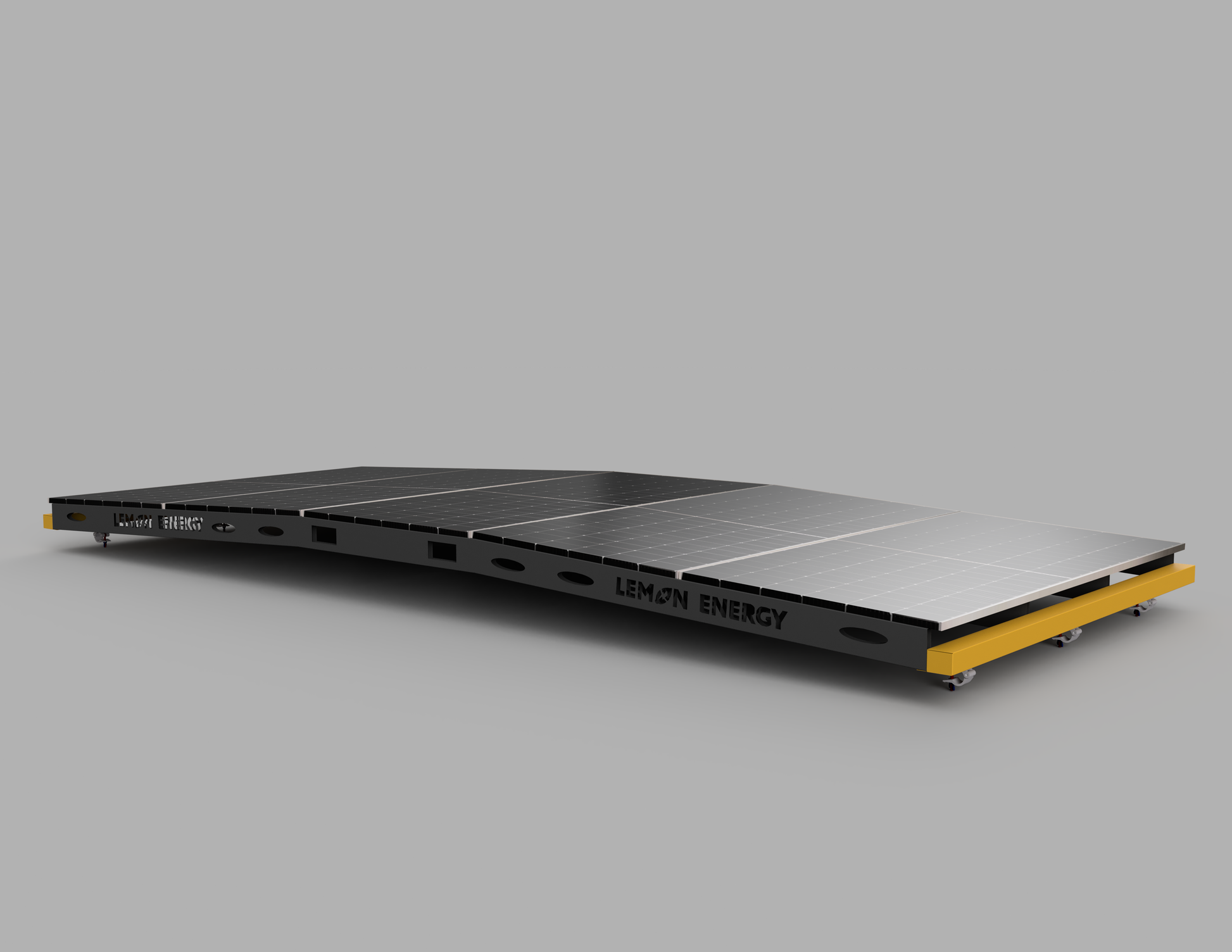

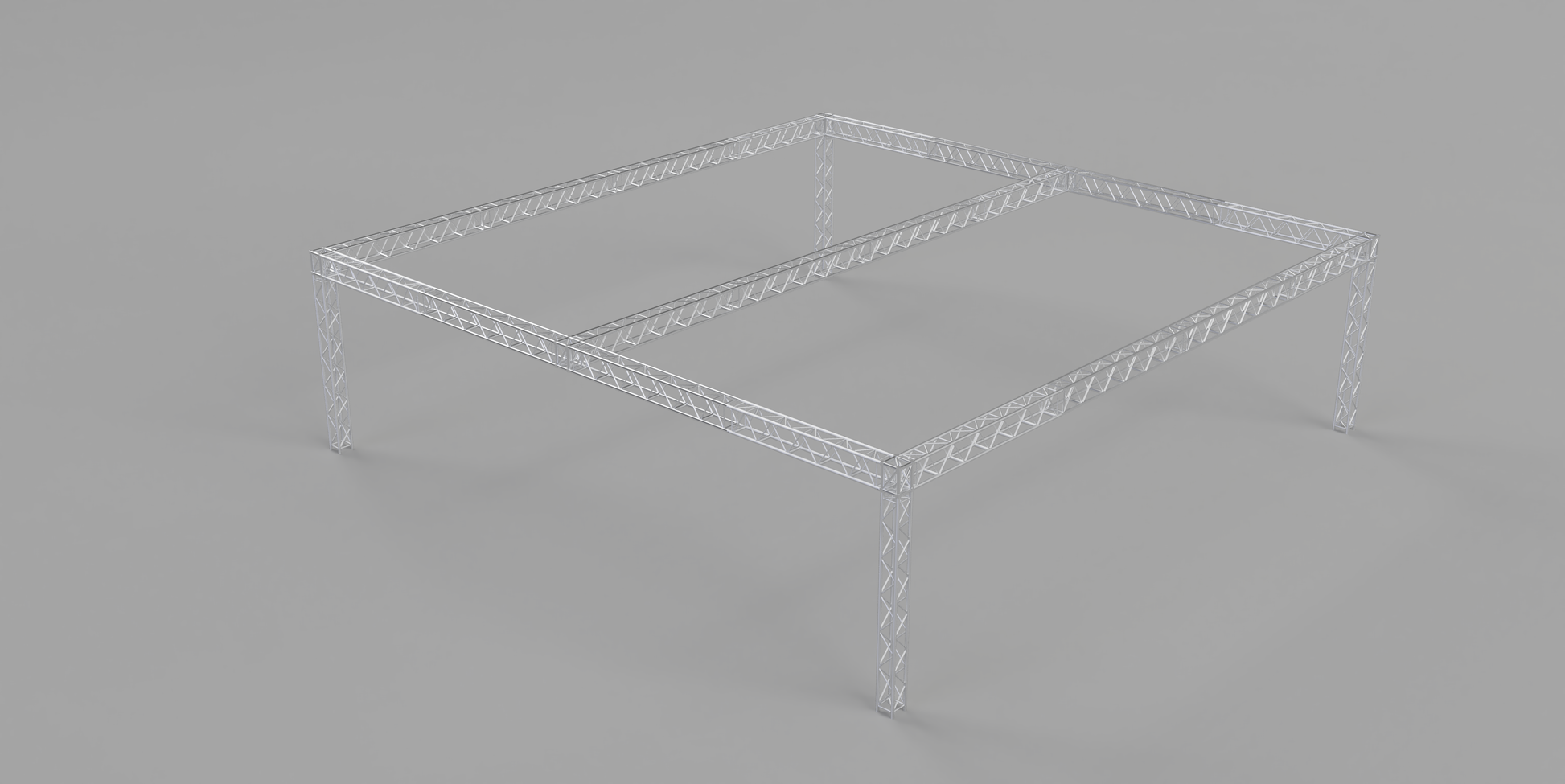

Our Solar Truss module is a fully aluminium unit that spans 6m between supports. Each module has 5 PV Panels giving a huge 3.2kWp of output. This allows a 12m x 12m Aluminium truss grid with just one central support. The kit utilises 280x380 rectangular truss to span the 12m distances between post while supporting the full 10 panels and 32.3kWp of solar above it.

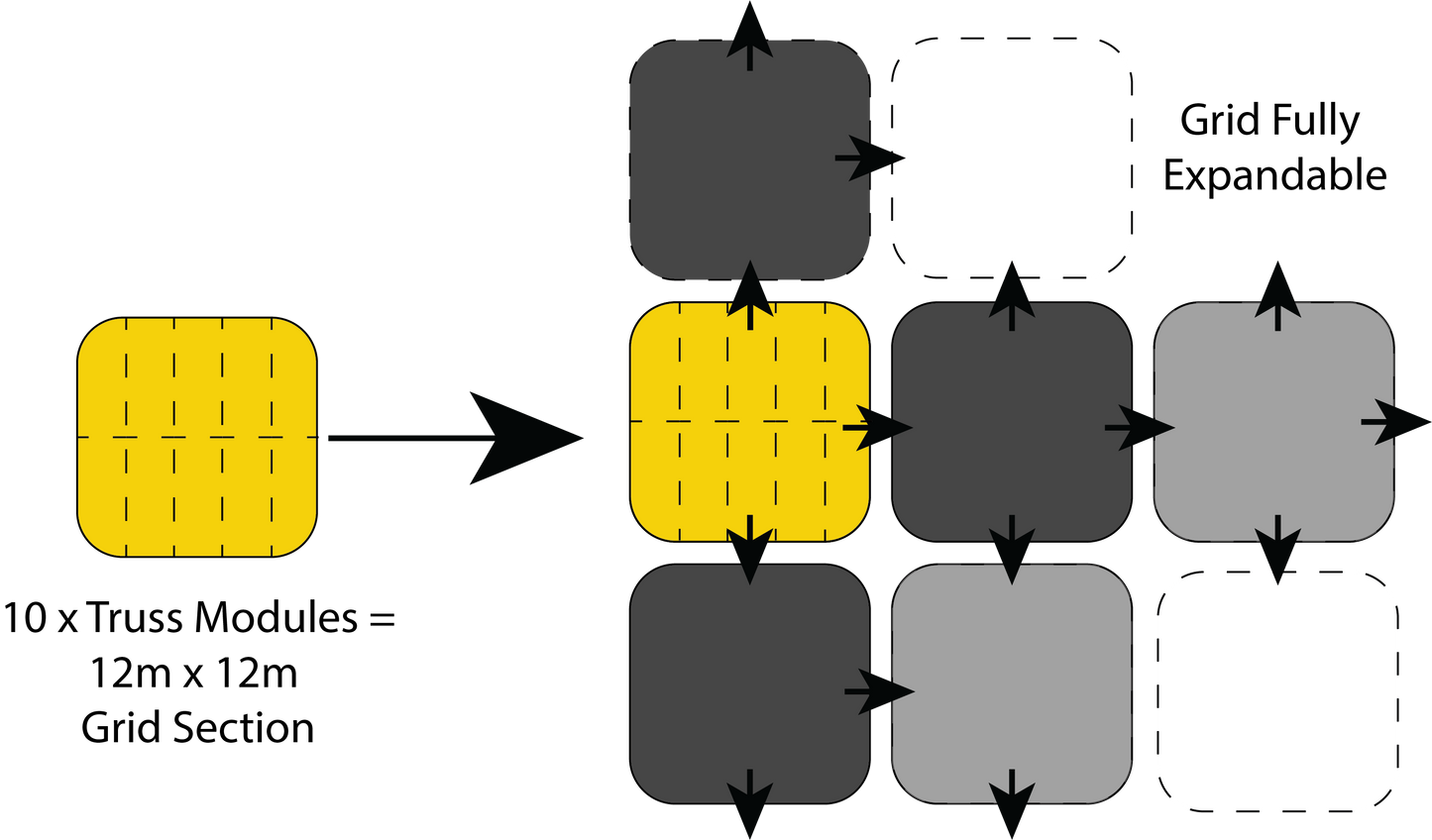

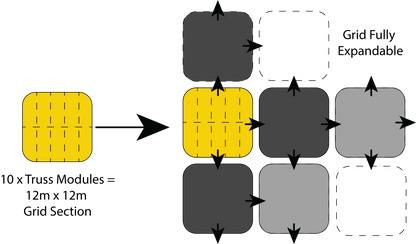

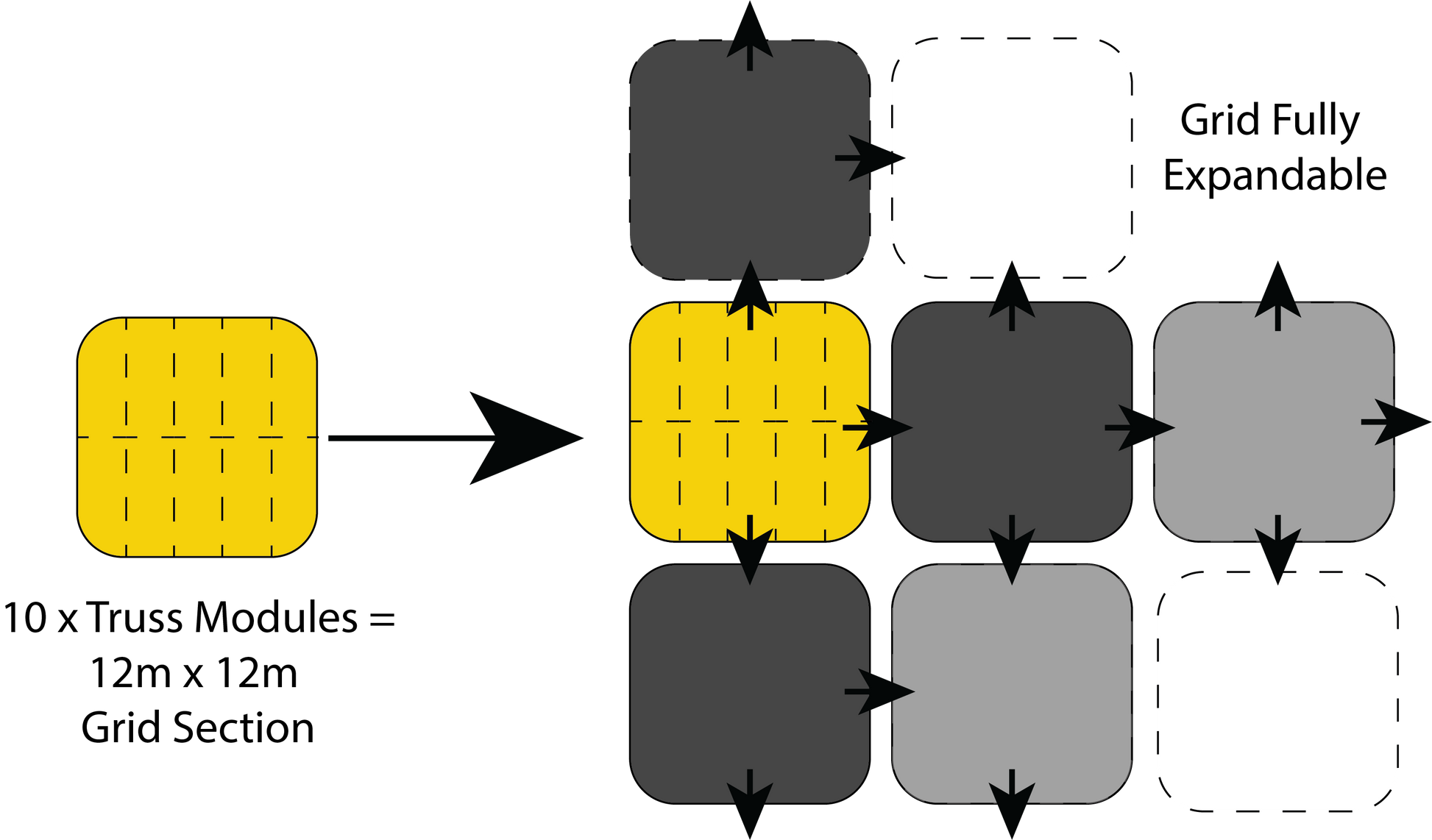

Fully extendable allowing huge covered area to be created to facilitate vast uses. with a 12x12m grid for supports maximum versatility can be maintained. larger spans are possible with different truss sections. Contact us for custom solutions.

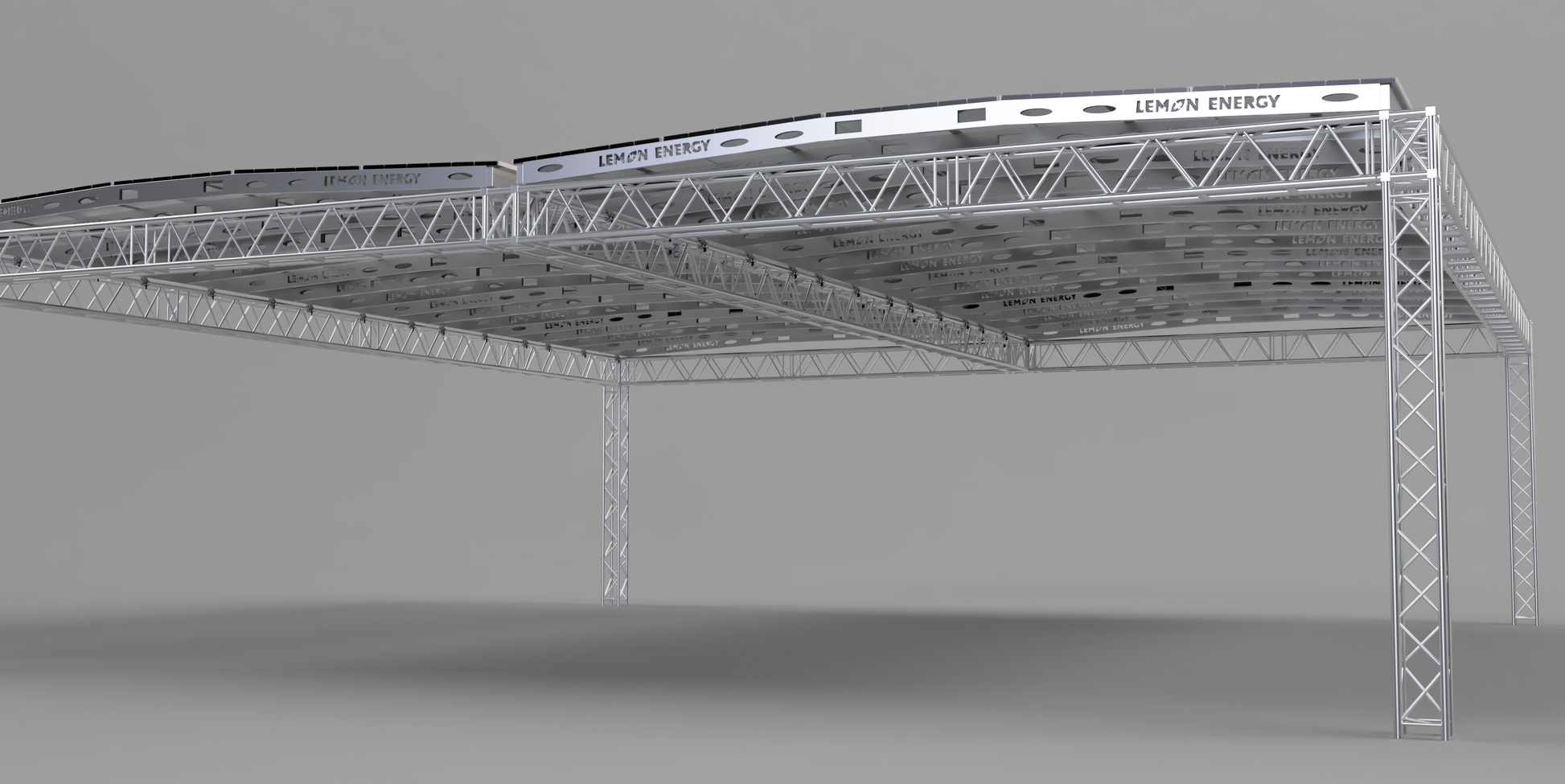

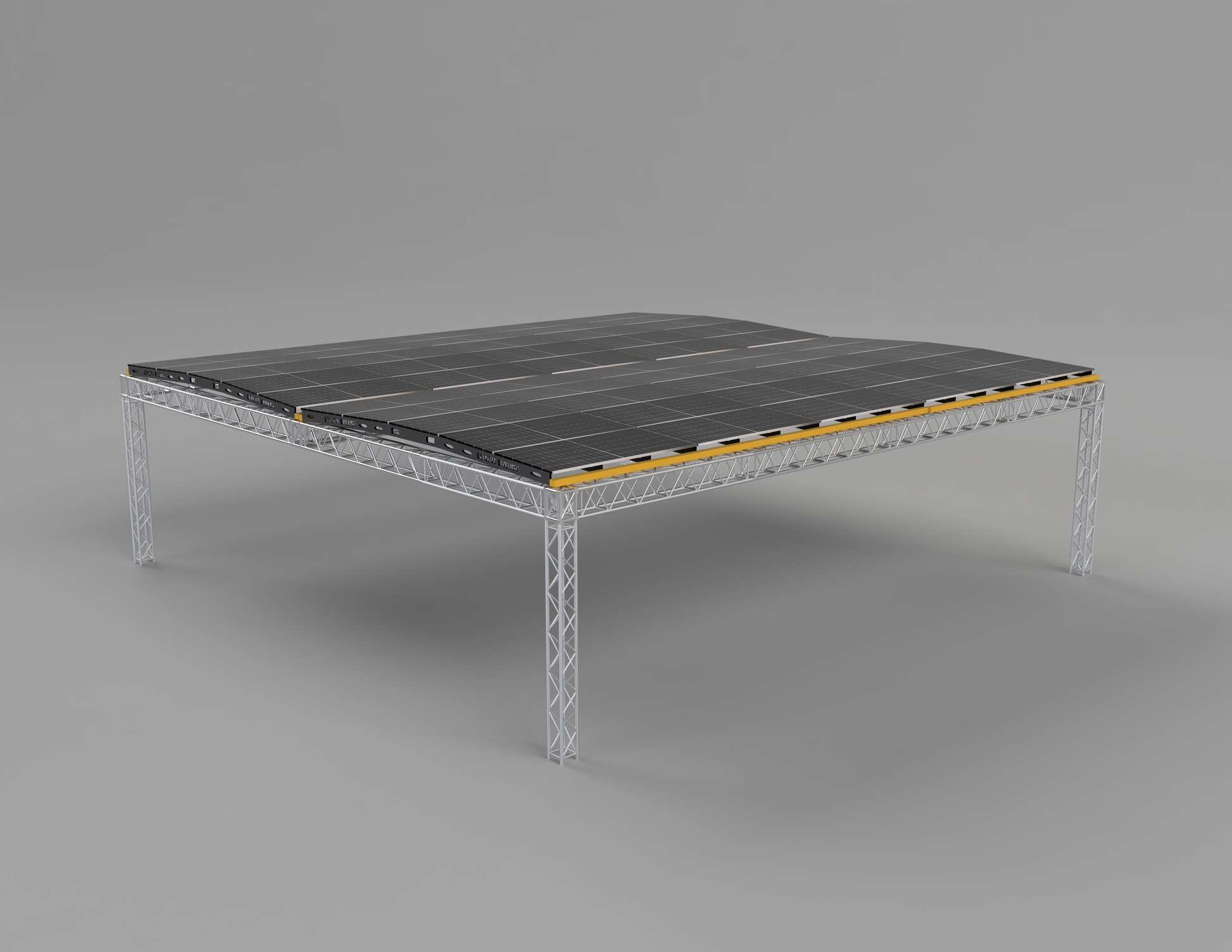

Once all panel modules are mounted they create a shade canopy and a waterproof shelter. A perfect combination of power production and subsequent benefits for all events and festivals.

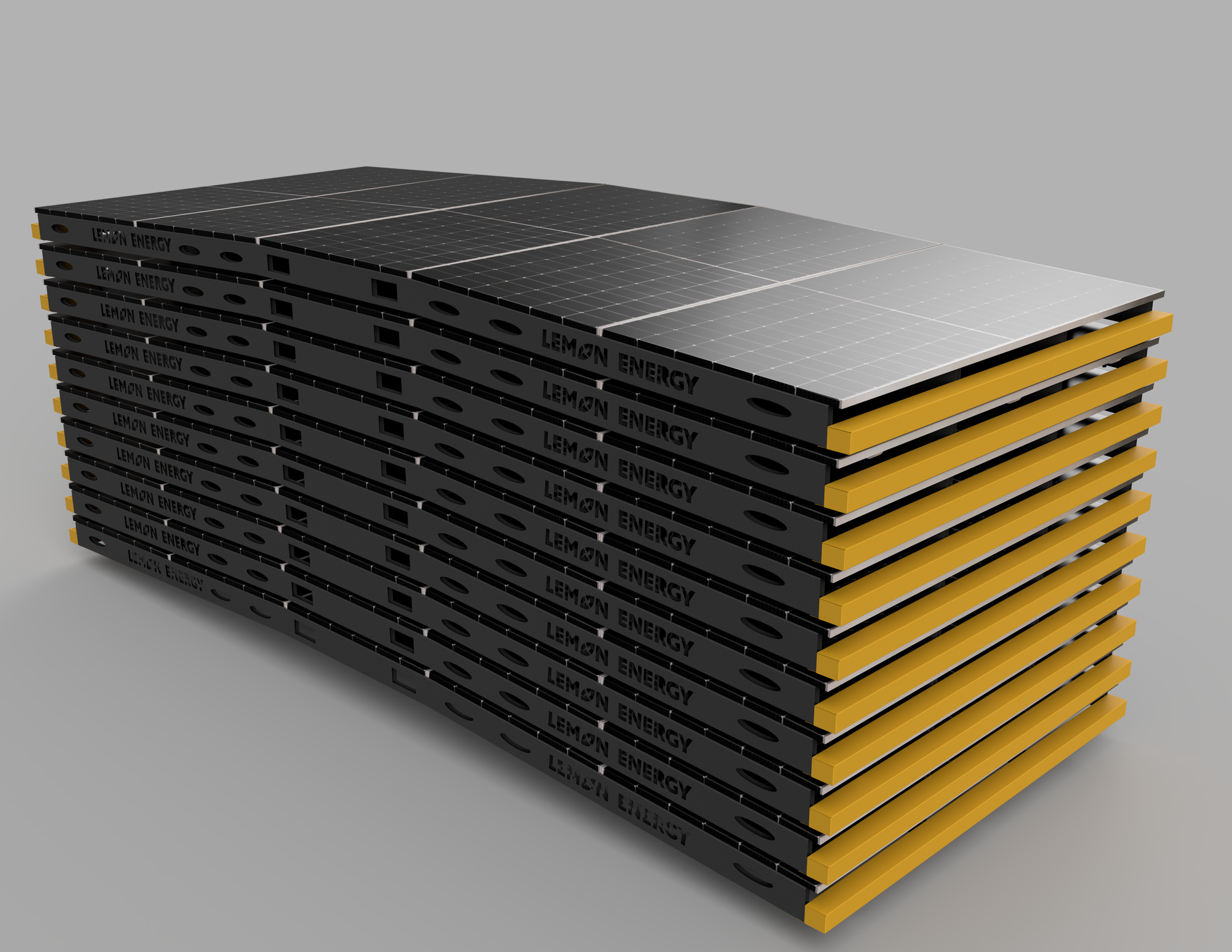

Stack of 10 comes with a FREE base carrier for easy forking on and off transport.

Kit includes -

10 stack of Solar Truss Models and carrier.

6x 280x380 corner cubes

13x 3m sections of 280x380 truss

7x 2.5m sections of 280x380 truss

4x 3m section of 280x280 truss as uprights

4x 280x280 plate feet
