The Big Lemon 48v
The Big Lemon 48v
Couldn't load pickup availability
15kWh Battery. LiFePO4. 10 year/6000 cycle guarantee. Up to 200amp discharge rating. Communication for 16 packs in parallel.

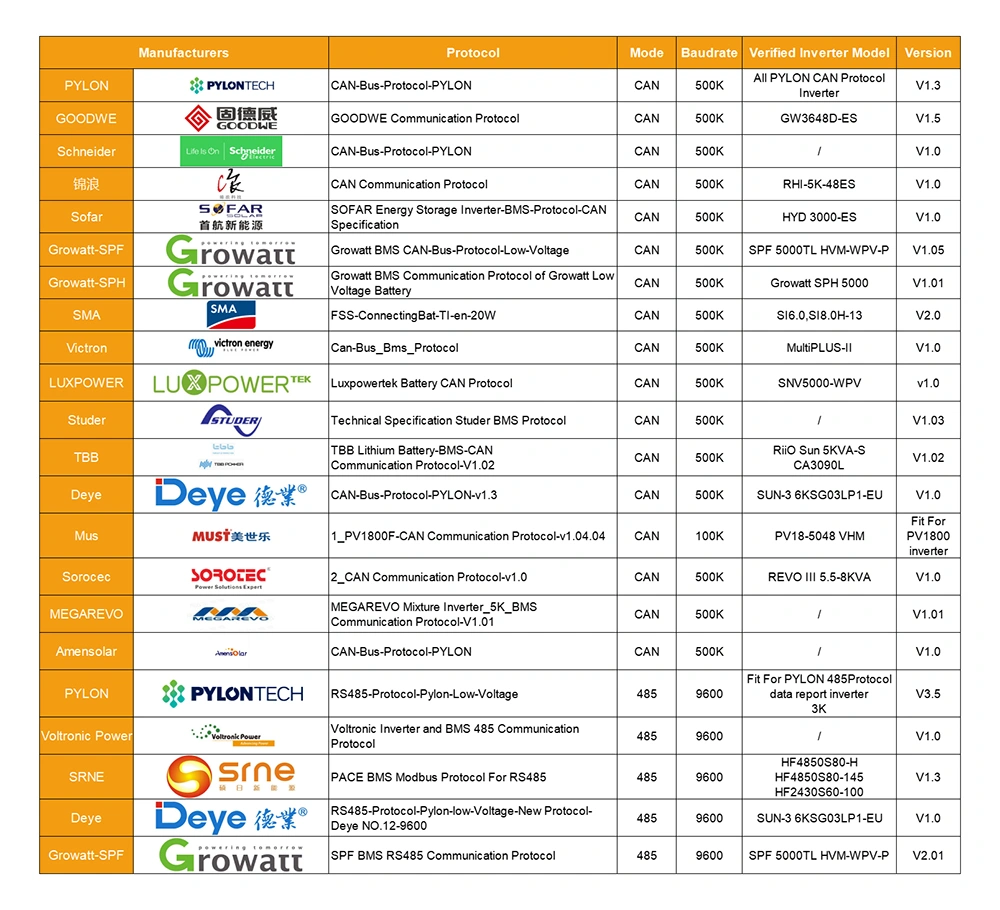

With up to 16 modules that can be connected in one communication chain. Making simple installs allowing up to 240kWh with ease. Direct communication compatible with 20 brands. with communication protocols including, Victron, Growatt, SMA and many more. With an unlimited number of batteries being able to be used in larger system with 3rd party monitoring allowing installs into the MWh using this compact module.
Internal 250A Fuse and dry anti touch connectors making the installation process safer.
Charge and Discharge rates of up to 200A continuous.
15kWh Units available for delivery.
Specification
Specification
Nominal Voltage: 51.2V
Nominal Capacity: 228Ah & 280Ah @0.5C discharge current 25±2C
Nominal Power: 11.5kWh & 15kWh
Weight: 120KG
Discharge Cut-off Voltage: (V) 41.6V
Charge Voltage: (V) 57.6V
Recommended Charge/Discharge Current: 150A @25±2C
Max charge/discharge Current: 200A @25±2C
Recommended charge/discharge Current: 150A @25±2C
Max charge/discharge Current: 200A @25±2C
Working Temperature:
0~50℃(Charge)
-10~50℃(Discharge)
-20~55℃(Storage)
SOC Range: 0%- 100%
Recommended SOC: Range 10-100%
Communication Interface: CAN and RS485
Internal CNN Fuse: 250A
IP level: IP 20
Shipping & Returns
Shipping & Returns
In Stock and Available for Next Day Pallet Delivery
Dimensions
Dimensions
450mm Wide, 270mm
Deep, 825mm High
Care Instructions
Care Instructions
Please read all included documentation and instructions before installation.
Always check product compatibility before powering up.
