6mx24m Truss Walkway Section

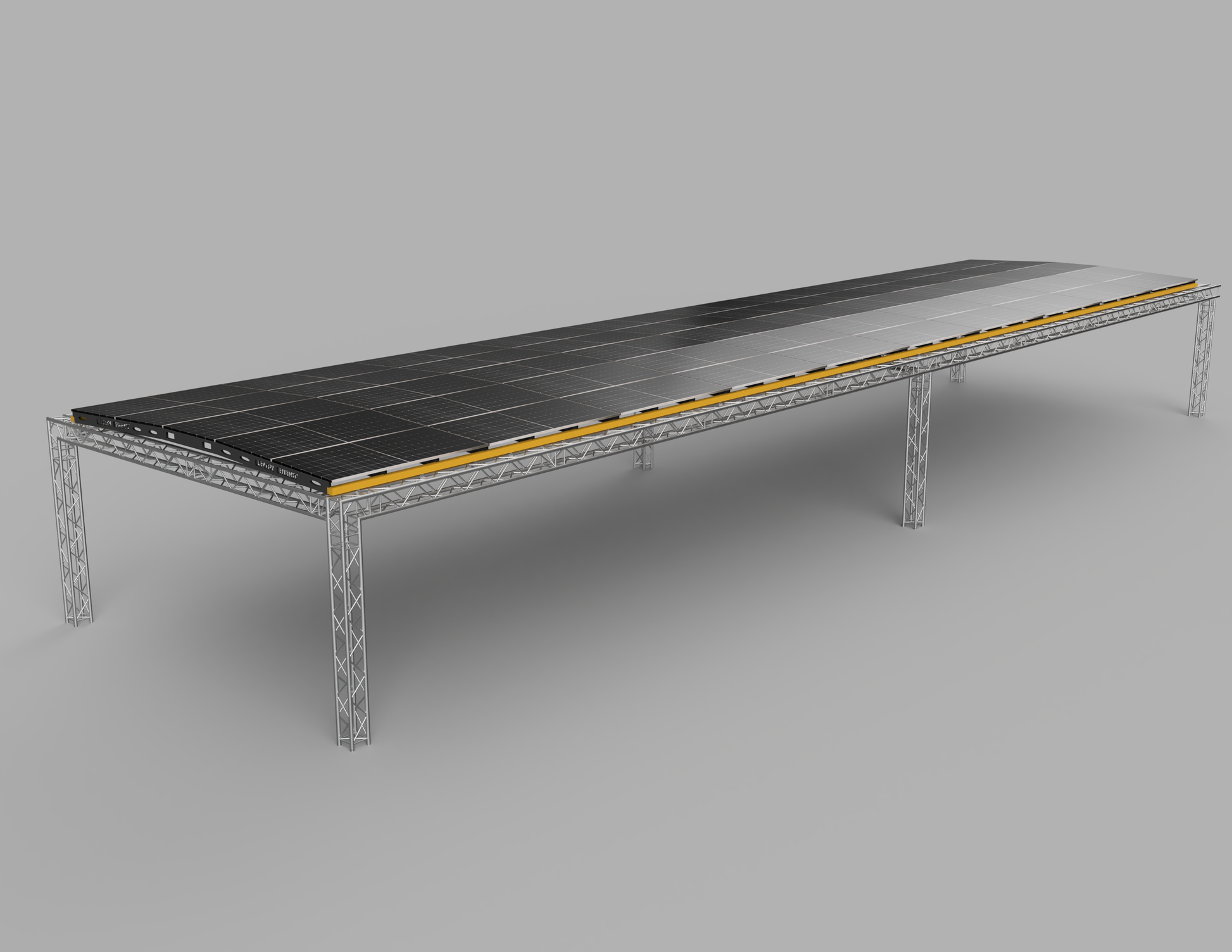

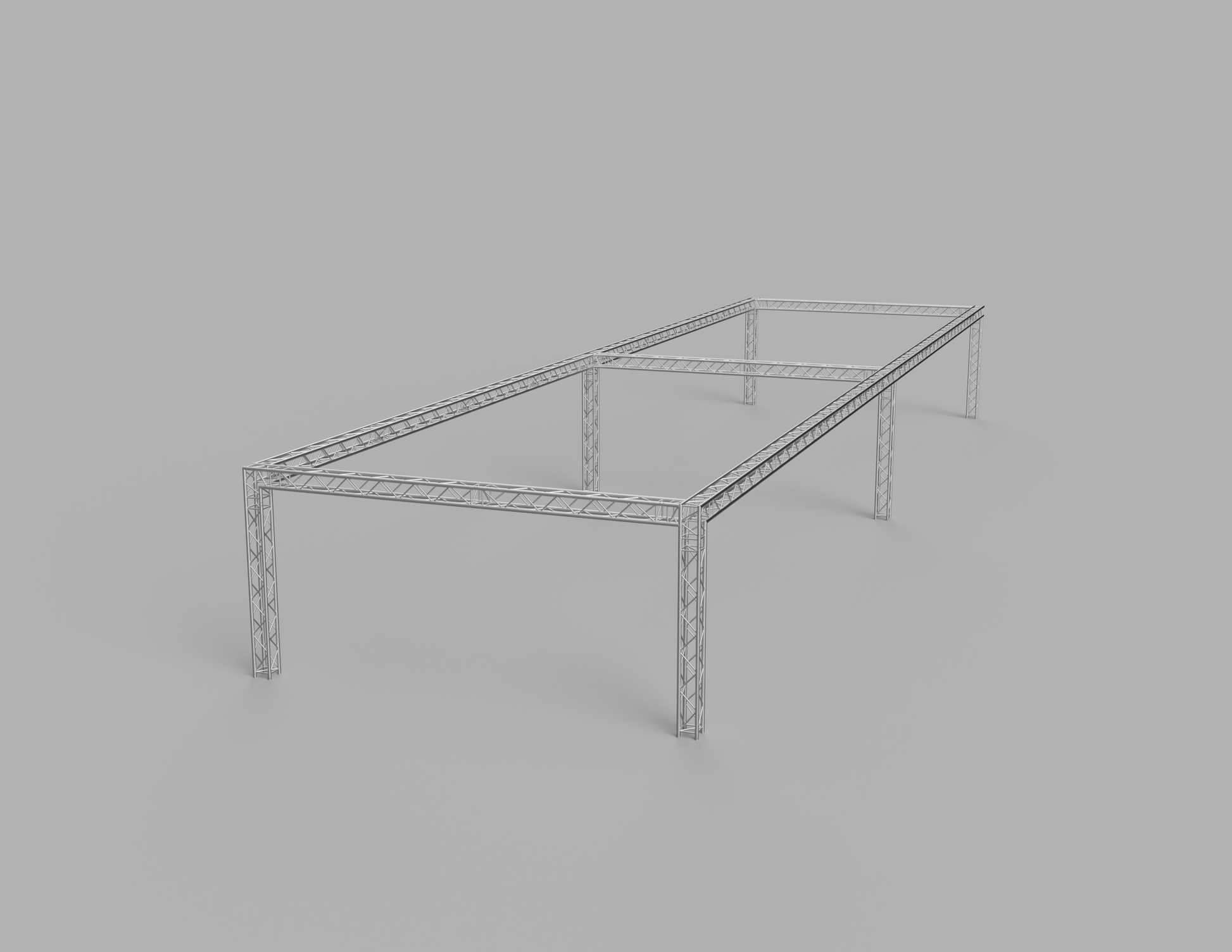

, Our Solar Truss module is a fully aluminium unit that spans 6m between supports. Each module has 5 PV Panels giving a huge 3.2kWp of output. When Combined with 280x280 truss it allows a 6m x 12m walkway section to be created that can be extended to any length. The kit utilises 280x280 rectangular truss to span the 6m distances between post while supporting the full 5 panels per 12m run of walkway and 16kWp of solar above it. Standard kit is for a double length section creating a 6m x24m walkway.

Fully extendable allowing huge covered walkway lengths to be created to facilitate vast uses. With a 6x12m grid for supports maximum versatility can be maintained. Larger spans are possible with different truss sections. 12m and 18m wide walkways possible. Contact us for custom solutions.

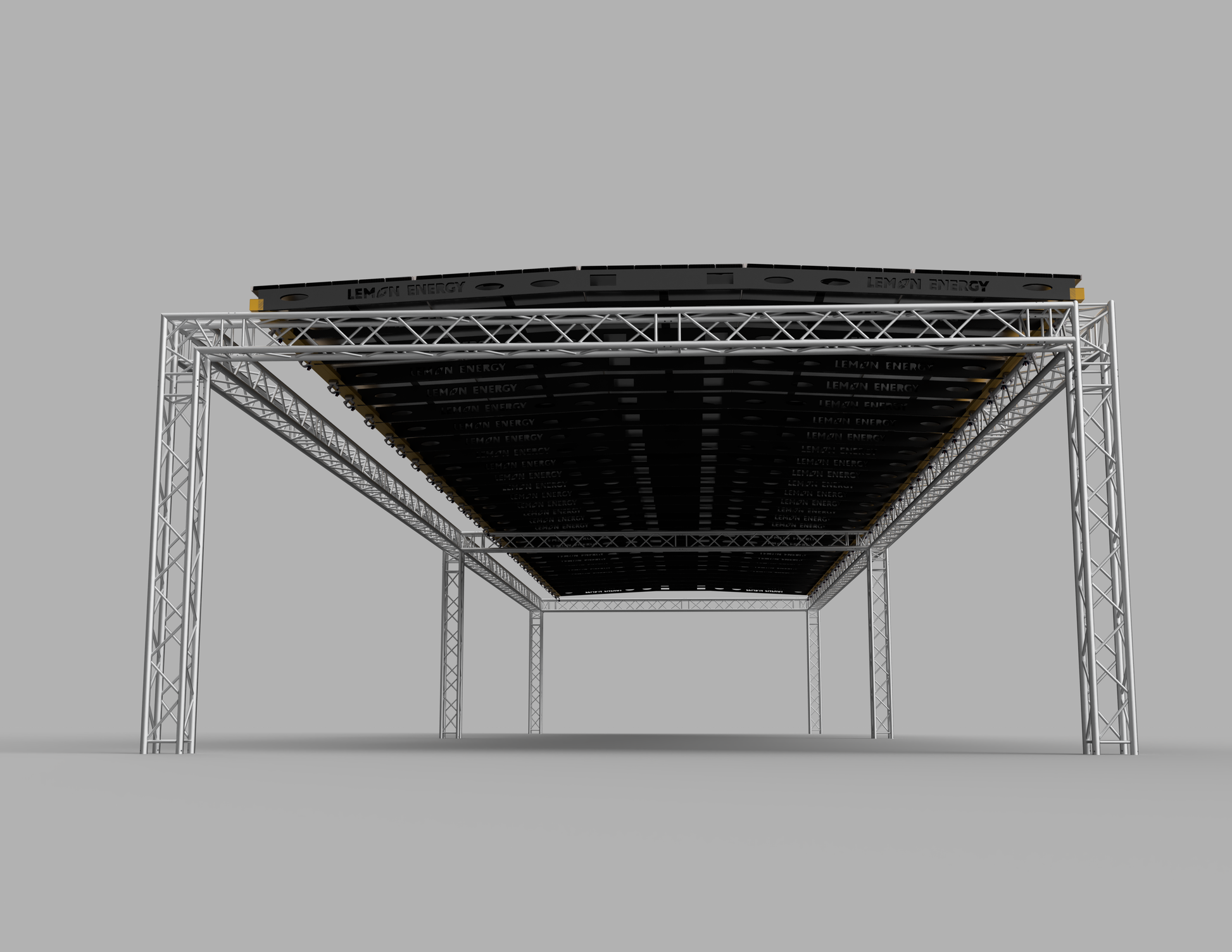

Once all panel modules are mounted they create a shade canopy and a waterproof shelter. A perfect combination of power production and subsequent benefits for all events and festivals.

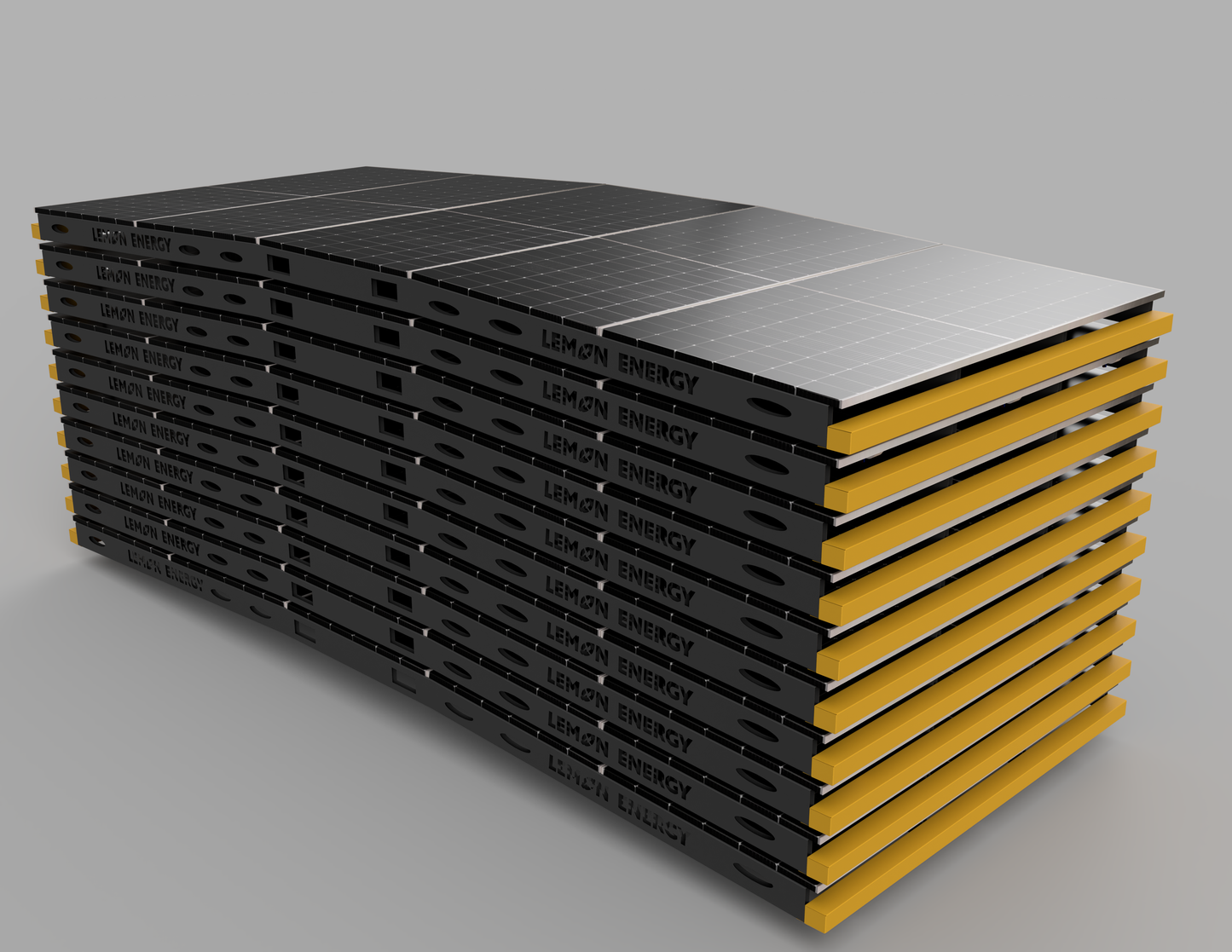

Stack of 10 comes with a FREE base carrier for easy forking on and off transport.

Kit includes -

10 stack of Solar Truss Models and carrier.

4x 280x280  3 way corner

2x 280x280 4 way T

15x 3m sections of 280x280 truss

7x 2.5m sections of 280x280 truss

6x 2.5m section of 280x280 truss as uprights

6x 280x280 plate feet

An truss to make this 2x 6x12m chunks can be added on request.

This would be an extra 4 x 280x280 3 way corners, 3x 2.5m sections of 280x280 truss, 1x 3m sections of 280x280 truss and 2x 280x280 plate feet
